What Is Beam Angle and Why It Changes Everything About How a Room

Two people buy the same downlight. Same wattage, same lumens, same colour temperature. One installs it and the room feels bright and well-lit. The other installs it and the room feels like a series of spotlit patches with dark gaps in between. The fitting is identical. The beam angle isn't. And that one number explains everything.

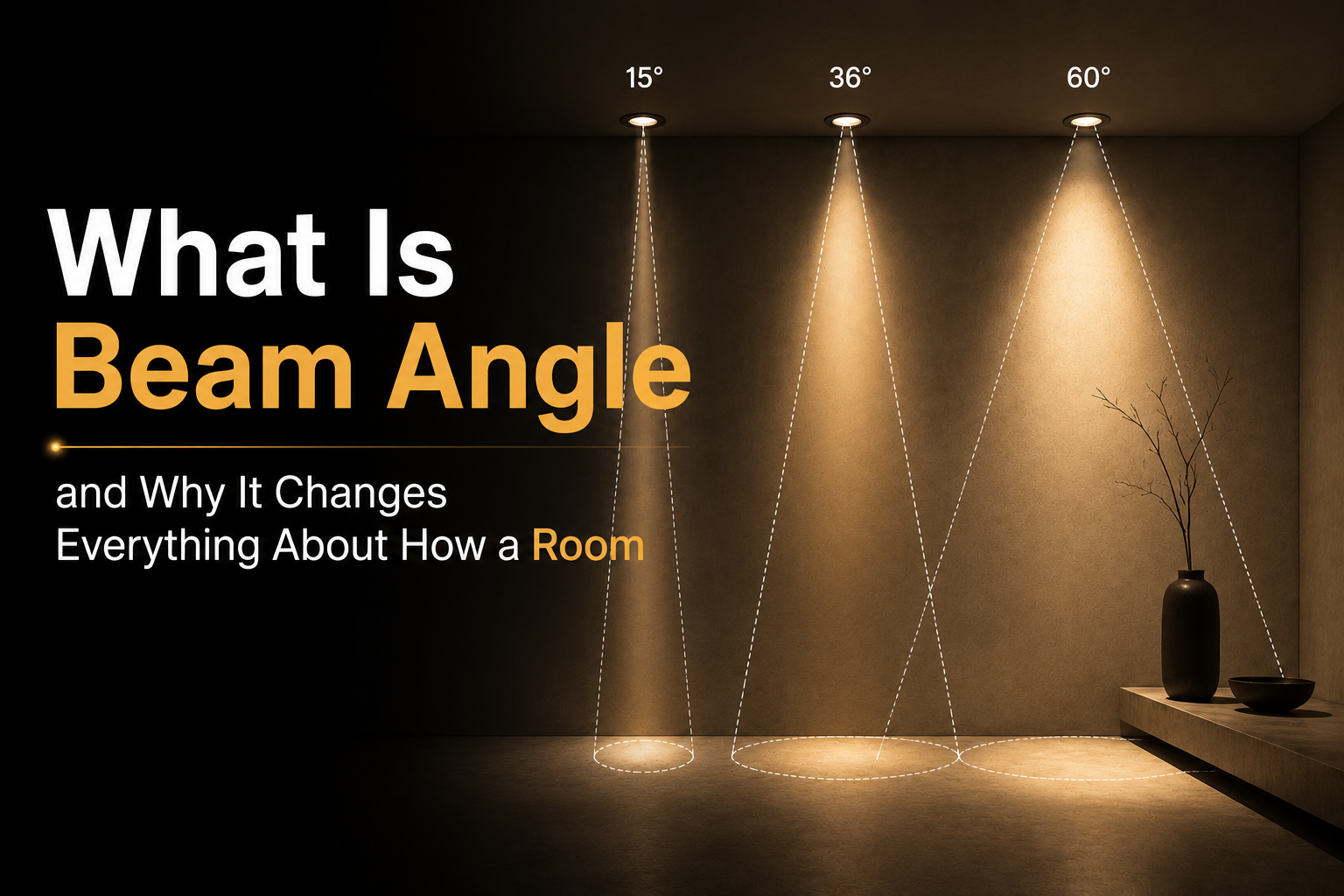

Beam angle is the width of the cone of light that a fitting throws. It's measured in degrees, the angle from one edge of the light beam to the other, at the point where the light reaches half its peak intensity. A narrow beam angle produces a tight, focused cone. A wide beam angle spreads the same light across a much larger area.

Think of it like a torch. A torch set to narrow focus produces a bright, concentrated circle of light on a wall. A torch set to flood produces a dim, wide wash. The battery is the same. The output is completely different. Beam angle in a ceiling downlight works on exactly the same principle.

Narrow beams, typically in the 15 to 25 degree range, concentrate light into a tight, intense cone. This is excellent for accent lighting, directing attention to a piece of artwork, a textured feature wall, a display shelf, or an architectural detail. The contrast between the lit subject and the surrounding space is sharp and deliberate. Used well, narrow beams create the kind of depth and visual interest that makes a room feel genuinely designed.

Medium beams, in the 36 degree range, offer a balance between directionality and coverage. They work well as task lighting over specific surfaces, a kitchen counter, a reading chair, a bathroom vanity where you want focused illumination without the dramatic intensity of a narrow spot.

Wide beams, from 60 degrees upward, spread light broadly with lower peak intensity. These are the right choice for general ambient lighting. The base layer of illumination makes the room usable and comfortable. In most living areas and bedrooms, wide-beam downlights distributed across the ceiling create the even, pleasant ambient light that the room needs without harsh bright spots or visible dark patches between fittings.

Here's where beam angle becomes a practical issue in real homes. If you install narrow-beam fittings and space them the same way you would wide-beam fittings, you end up with exactly those spotlit patches and dark gaps which make a room feels uneven and slightly uncomfortable even though the individual fittings are working correctly.

The beam angle determines how far apart fittings can be spaced while still overlapping their light patterns into consistent coverage. A 60-degree beam at a standard Malaysian ceiling height of around 2.8 to 3 metres covers a floor diameter of roughly 3 metres. A 24-degree beam at the same height covers less than 1.3 metres. To achieve the same even coverage, you'd need significantly more narrow-beam fittings, and the result would still feel different because narrow beams create intensity rather than evenness.

This is why checking beam angle before finalising a downlight layout matters. Getting the spacing wrong is a difficult mistake to fix after the ceiling is closed.

The most effective rooms use a mix of beam angles working together. Wide-beam fittings handle the ambient layer, providing even, comfortable and practical illumination. Narrower fittings handle the accent layer, highlighting artwork, textures and features worth noticing. The combination creates a room with both the functionality of good general lighting and the visual richness of deliberate contrast.

You don't need to memorise the numbers. You need to ask the question: is this fitting being used for ambient coverage or for directing attention at something specific? The answer tells you which end of the beam angle range you're working in.

If you're planning a layout and want to check that your beam angles and spacing will actually work the way you're expecting, that's a straightforward conversation and one that's much easier to have before installation than after. We're happy to take a look.
